AVC-68IP5080PZ, 5.0MP 20x H.265 UHD IP PTZ Dome Camera

5.0 Megapixel HD CMOS
Horizontal Resolution (2592X1944)
8-Array IR LEDs
Distance up to 100mtr.
20X Optical Zoom
IP66 Weather Proof

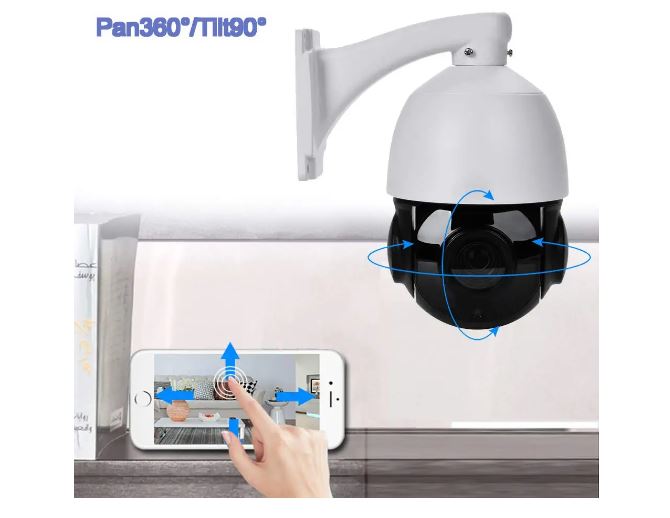

360 Unlimited Rotation ( Pan:360 & Tilt:93 )
H.264/H.265 Supported

Description

5MP 20x H.265 HD IP Network PTZ Speed Dome Camera

MODEL: AVC-68IP5080PZ


Feature:

-1/2.7″ 5Megapixel CMOS sensor

-H.265/H.264, Dual Stream, Max 2592x 1944 Resolution

-20x Optical zoom lens

-Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT, D-WDR, Mirror, rotate, Defogging

-Multiply Style OSD Overlay, Motion Detection, Privacy Mask, RTSP and Onvif 17.06 compatible with many third-party NVR such as HIK/Dahua/UNV

-Easy-to-use P2P Cloud service, Support user authentication, video data encryption, Support Alarm Snapshot to Email and FTP

-Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access

-Pan/Tilt/Zoom, 360 rotate, 90 auto flip,  Horizontal Rotation Speed 0.5°~40°/s, Vertical rotation speed 0.5°~40°/s

-Support 128 presets, 8 cruise, Scanning, Parking support preset, Scan/Cruise

-Lightning protection 4000V

-8 pcs Array IR Led, IR distance 100 meters

-DC12V, POE, IP66

Dimension:

Specification

Model AVC-69IP2080PZ
Camera
Image Sensor 1/2.7″ 5 Megapixels CMOS
Effective Pixels 2592×1944@20fps
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
AGC/BLC/HLC Support
DNR 2D/3D DNR
Other Multi-lines OSD, Motion Detection, Privacy Mask, Mirror
Encode
Video Standard H.265/H.264
Video Resolution Main Stream: 20fps@5MP(2592×1944),30fps@4MP/3MP,30fps@1080P/720P
Sub Stream: D1/VGA(640×480)/360P/QVGA@25fps
Video Bitrates 32Kbps – 8Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a
OSD Overlay Title and Time overlay
IR Led
IR Led 8pcs array IR Led (4 near + 4 far)
IR Distance 100 M
Lens
Focal length 4.7-94mm
IRIS F1.6-3.5
View angle 64 – 2.9 °
Zoom 20x optical zoom
Other Function (Optional)
Standard IEEE 802.3af/at , high power
Audio Internal Microphone
PTZ
Pan/Tilt Range Pan: 0° ~ 360°; Tilt: 0° ~ 90°
Preset Point 128
Control Speed Pan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s
A-B  Scanning Support
Auto Cruising Support 8 groups
Power on Action Preset/Scan/Cruise
Power-off Recovery Support
Network Services
Protocol HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P Yes
Web IE , Firefox (32bit esr), etc.
Media CMS, Android, IOS
ONVIF 17.06 compatible
General
Network Port 1-RJ45, 100Mbps, PoE 48V in
Power Supply 12 VDC ± 10% 2A
Power Consumption < 20 W
Operating Temp. -30-(+60), 10%-90%RH
Size Φ137(mm)×234(mm)
Weight 2.2kg

Download

Download Datasheet  Download
