| Model |

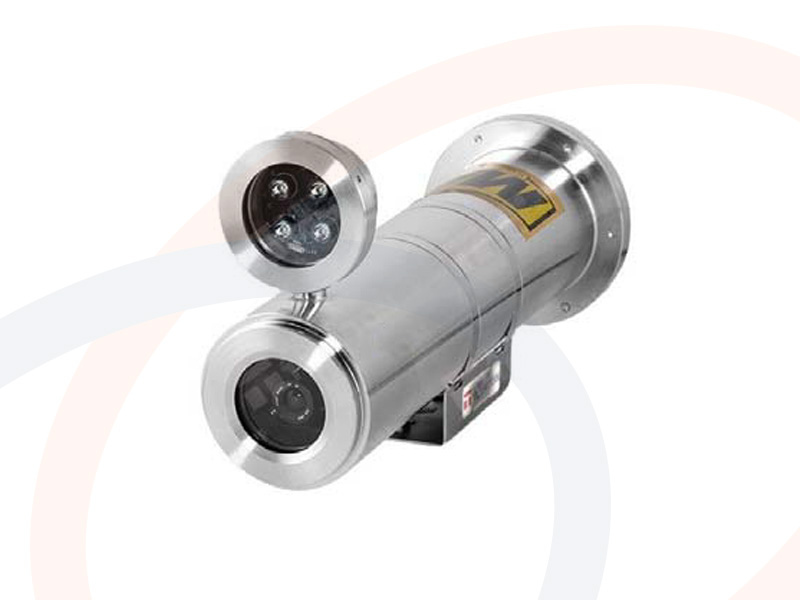

AVC-IP5030EP |
| Image Sensor |
1/2.7” 3 Megapixel STARVIS™ CMOS Sensor |
| Min. Illumination |
0.001Lux/F1.4 /0Lux/F1.4 (IR on) |
| Shutter time |
1/25 s ~ 1/8,000s |
| Lens |
2.8-12mm Motorized Lens (4X Optical) |
| Day& Night |
Auto Switch IR Cutter Filter |
| Wide Dynamic |
140 dB |
| DNR |
3D DNR |
| Compression Standard |
| Compression |
H.265 / H.264 / MPEG |
| H.265/H.264 Code |
Main Profile |
| Video Bit Rate |
32Kbps~16Mbps |
| Image |
| Resolution |
2048*1536 |
| Frame Rate |
2048*1536(25/30fps) |
| WDR |
HDR |
| Image Enhancement |
AGC, 3D DNR, WDR, Sharpness |
| Image Settings |
Motion Detection, Privacy Mask,Video Tampering |
| Day/Night Switch |
Auto/Outside Trigger/Color/Black White |
| Network |
| Network Storage |
NVR & CMS |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP,
Hikvition’s Private Protocol |
| General Function |
Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask |
| System Compatibility |
ONVIF2.4, PSIA, CGI, SPR |
| Browser |
IE |
| Interface |
| Interface |
1* RJ-45 10M/100MEthernet Port |
| Audio Input |
AV Port |
| Audio Output |
AV Port |
| Reset button |
1*Reset button |
| Alarm |
1* Alarm Input; 1*Alarm Output (optional) |
| Micro SD Slot |
Micro SD/TFCard Slot, Support Max. 128G (Optional) |
| LEDs |
4 PCS Array LEDs |
| General |
| Operating Temp. |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Operating Humidity |
Humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25% |
| PoE |
PoE (IEEE 802.3af Class3) |
| Power Consumption |
Max. 11.5W |
| IP Grade |
IP66 |
| IK Grade |
IK10 |
| Explosion Grade |
ExdIT6 |
| IR Range |
80 Meters |
| Dimensions (mm) |
380mm * 270mm * 140mm |
| Net Weight (kg) |
8.5kg |
