Description

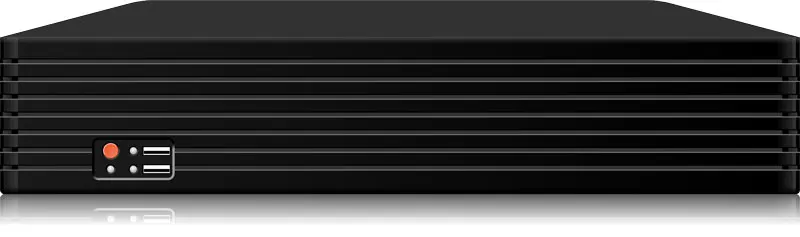

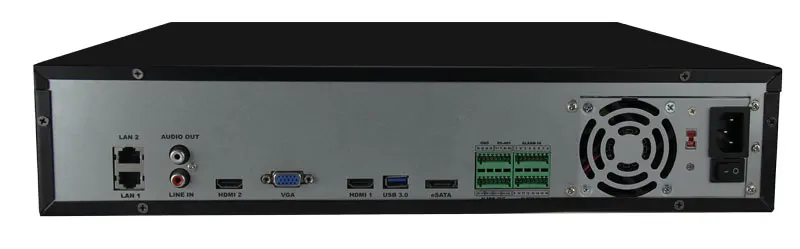

Physical Structure

1.Support 8Mp Camera preview, storage, playback. Higher definition, never let go any details.

2. Support H.265 video compression, save more hard disk space, make sure your hard disk can record more details.

3. 64 CH cameras access simultaneously, 320M ultra bandwidth, every details you can be aware of.

4. Support 100V~240V 50Hz~60Hz power supply, make sure it is safe in any country of the world.

5. Strong compatibility, compatible with the famous brand camera of the third party and standard protocol Onvif camera.

6. Easy operation, one-key add function, make everything simple.

7. 8HDD & Recording

Main Features

Third-party network cameras supported
Up to 8-Megapixels resolution recording and playback
Support OSD setting
711 Audio input/output
Alarm input/output

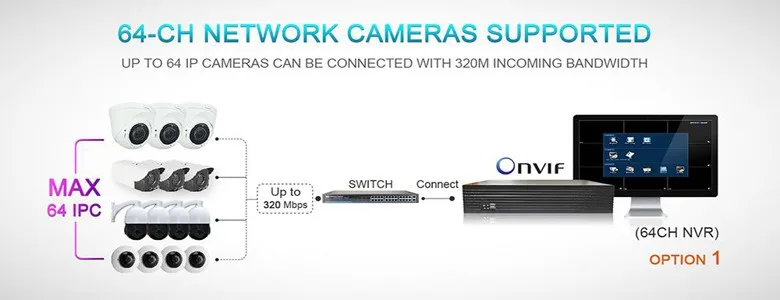

Up to 64 IP cameras can be connected with 320Mbps incoming bandwidth
Support H.265/H.264 video formats
Support HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search, P2P

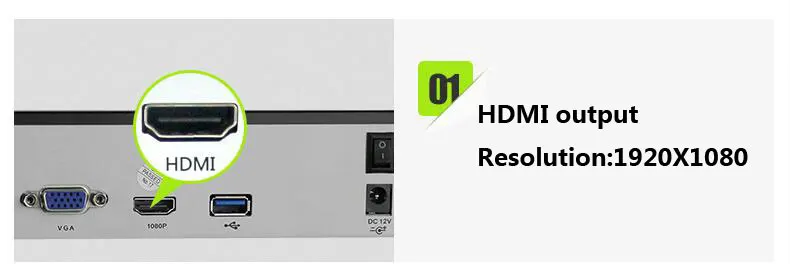

Support 2-ch HDMI, 1-ch VGA, HMDI1 at up to 4K(3840×2160)resolution
Support USB 3.0/ 2.0)

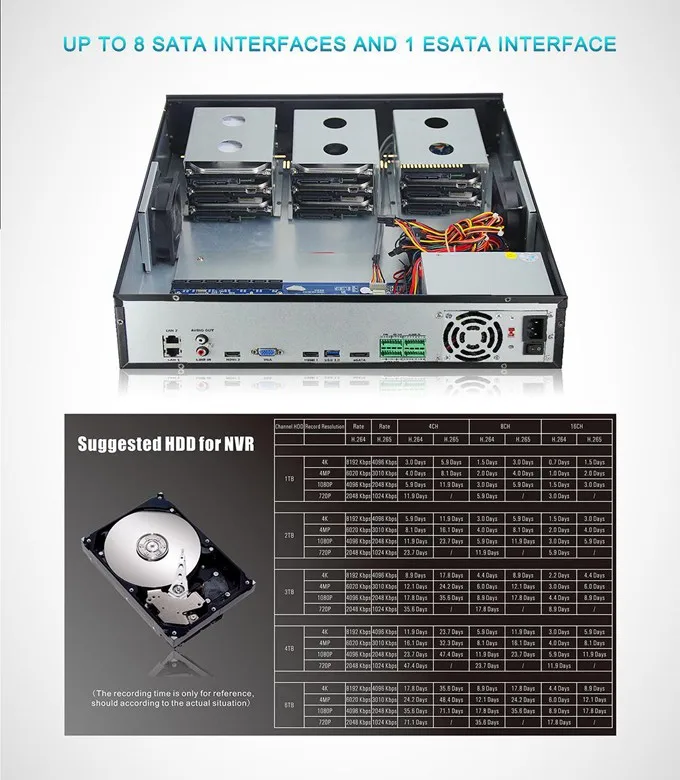

Up to 8 SATA interfacesand 1 eSATA interface)
100~240V AC 50~60HZ broadband AC power supply

Specification

Model	RVN-N6408
System
Main Processor	ARM Cortex A17 Quad-core Processor
Operating System	Embedded LINUX
Video
Input	64 Channel, Support 4096×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc, Incoming Bandwidth: 300MB

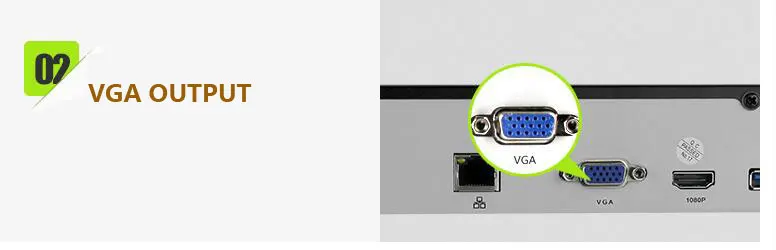

Output	1 VGA, 2 HDMI
Audio
Input	1 Port RCA
Output	1 Port RCARCA (Linear, 1kΩ)
Audio Bit Rate	64kbps
Audio Compression standard	G.711
Alarm
Sensor Input	16
Output	4
Motion Detection	64 Channel, MD Zones: 396 (22 × 18)
Trigger Events	Recording, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
Display
HDMI1	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split	64CHxD1/36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/ 1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom	YES
OSD	Camera Title, Time, Video Loss, Recording, Motion Detection
Recording
Video Compression	H.264/H.265
Resolution	4k(4096×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536), 1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (704×576/704×480)
Record Rate	PAL :4k@30×25fp,5MP@45×25fp,4MP@64x25fp,3MP@60×25fp,1080P@64×25fp, 960P@64×25fp,720P@64×25fp, D1@64×25fp NTSC: 4k@30×30fp,5MP@45×30fp,4MP@64×30fp,3MP@60×30fp, 1080P@64×30fp, 960P@64×30fp, 720P@64×30fp, D1@64×30fp
Record Mode	ManualTimerMotion Detection

Playback & Backup
Local Sync Playback	4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 10CH 3M@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps
Decode Capability	4CH 4K(3840×2160)@30fps
Remote Sync Playback	YES
Search Mode	ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions	Play, Pause, Stop, Fast Play, Digital Zoom
Backup Mode	USB Device/Network
Network

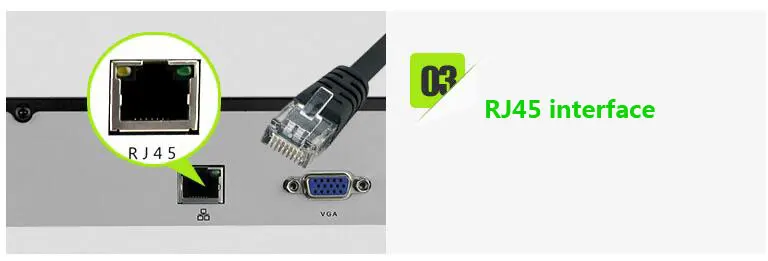

Interface	2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Incoming Bandwidth	350MB
Network Functions	TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version	Support Onvif 2.4
Web Browser	IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software	Support Windows 7/ Windows 8/Windows 10
Cloud Support(P2P)	Yes
Smart Phone	iPhone, iPad, Android, Android Pad
POE	/
WIFI	/
Storage
Interface Type	8 SATA Interface
Capacity	Up to 48TB capacity
eSATA	1 eSATA interface
General
Language	Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek

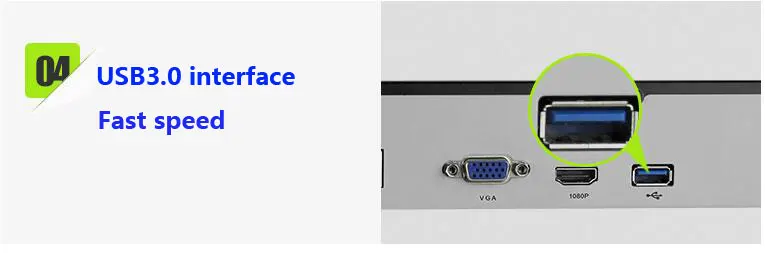

USB Interface	2 USB 2.0 Interfaces ,1 USB 3.0 Interface
RS485	1 Port, for PTZ Control
Power Supply	100 to 240 VAC, 50 to 60 Hz
Working Environment	-10~55℃/10~90%

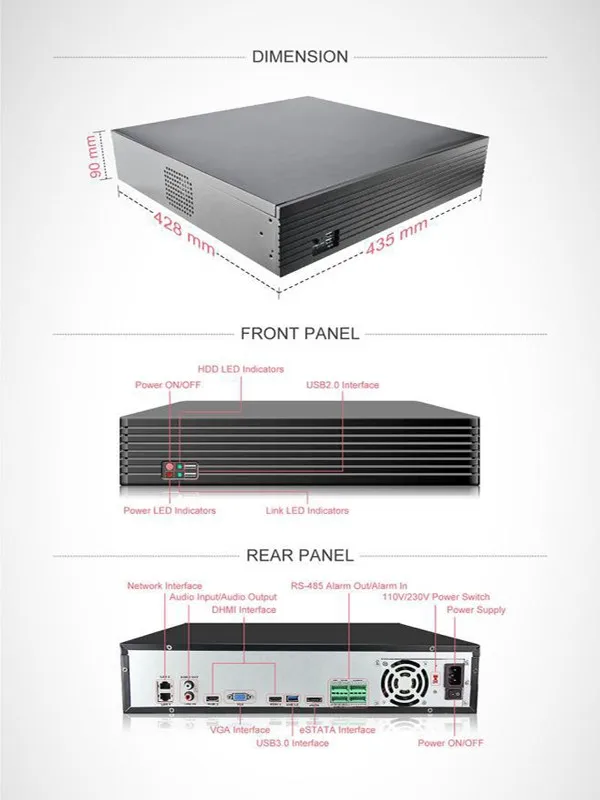

Dimension(W×D×H)	2U, 440mm×450mm×95mm
Weight	9.8Kg（without HDD）
