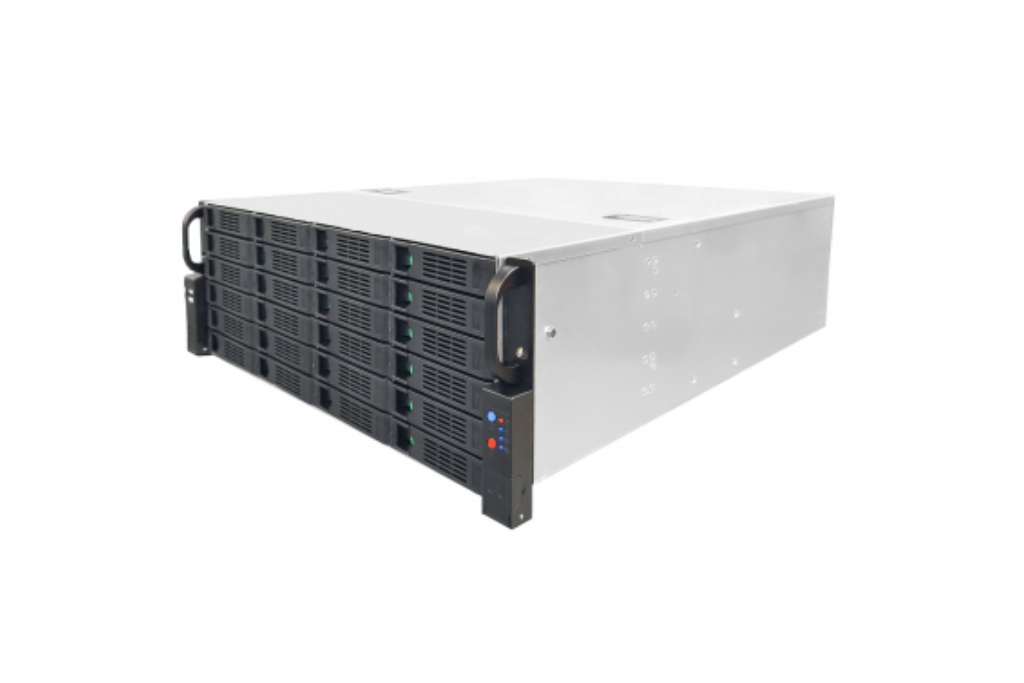

AVN-PN1924E:196CH 4K Full Real-Time Intelligent Intelligent Video Recorder

-Up to 196ch IP cameras inputs, 3U Case
-Up to 1-ch@8K or 4-ch@12mp or 9-ch@8mp or 16ch@5MP or 25ch@3MP or 128-ch@D1 decoding capacity
-4 HDMI video output, maximum HDMI resolution 8K
-24x SATA hard disk up to 16TB, 1 eSATA
-16ch Alarm input/8ch Alarm output
-2x RJ45 1000M network interface
-Incoming bandwidth 800M
-Smart search and playback, Support cloud upgrade



Categories: , , ,

Description

*Up to 196ch IP cameras access, 4U Case

*4x HDMI output:

Mode 1: 1x HDMI output(128ch preview+16ch playback), go to another page for the rest 68ch preview

Mode 2: 2x HDMI output(100ch +100ch preview+16ch playback)

Mode 3: 4x HDMI output(49ch+49ch+49ch+49ch preview+49ch playback)

*Up to 1-ch@8K or 4-ch@12MP or 9-ch@8MP or 16-ch@5MP or 25-ch@3MP or 128-ch@D1 decoding capacity

*4 HDMI ports simultaneous video output, maximum resolution of HDMI is 8K

*24 SATA hard disk up to 16TB each, 1 eSATA port

*16ch Alarm input/8ch Alarm output

*2 RJ45 1000M network interface

*Smart analysis: human detection, line crossing, retrograde detection, absent detection, loitering detection, area intrusion, illegal vehicle parking.

*Electronic amplification on preview and playback image

*Support to add IP camera manually or automatically in LAN

*Support channel group cruise

*Smart recording search & playback, alarm capture picture search

*Support USB disk and cloud upgrade, support to upgrade IP camera by USB disk

*Raid 0, 1, 5, 6, 10

*IPSAN, NAS, Hot-swap hard disk

*Support to configure and maintain IP camera under slink protocol, such as setup up IPC specification, factory reset IP camera, enable or disable all network function of camera

*Support email notification on alarm events

*Support ANR function(need front IP camera support TF card storage)

*Support broadcast function

Back Panel:

Specification

Video Input
IP Camera Input 196 Channel
Incoming Bandwidth 800 Mbps
Outgoing Bandwidth 400 Mbps
Video Output
HDMI Output 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1024×768
Decoding Capacity 1ch 8K, 4ch 12MP, 9ch 8MP, 16ch 5MP, 25ch 2MP, 64ch D1
Dual Stream Support
Multi-screen Display 1/4/6/8/9/10/16/25/36/64/128
1 HDMI Output 128ch(8K) Preview, change another page for the rests 68 channels preview
2 HDMI Output 100ch(8K) +100ch(4K) Preview
4 HDMI Output 49ch(4K)+49ch(4K)+49ch(4K)+49ch(1080P) Preview
Recording
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 1.3MP
Recording Mode Timing, Alarm, Timing and Alarm,  Alarm include,  Smart detection
Trigger Events Motion Detection, Video Loss, Smart detection, Human detection
Playback and Backup
Sync Playback 1ch 12MP, 4ch 4K, 16ch 2MP
Search Mode Smart Search, Time /Date, Alarm, Smart detection
Playback Mode Normal, Motion, Alarm input, Smart detection
Backup Mode USB Device, Network
Network
Network Function HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, RTMP, NTP, DNS, DHCP, P2P, IP Filter,

DDNS,  802.1X, SNMP, PPPoE
Remote Users 35 users
Smart Phone iPhone, iPad, Android, IMS Lite, IMS 4.0
Interoperability SLINK, ONVIF, SDK
Interface
Network Interface 2 RJ-45 (1000 Mbps) self-adaptive Ethernet port
PoE /
Audio I/O HDMI audio output, 1ch Audio  input/output
Alarm 16ch input/  8ch  output
USB 3 ports (USB 2.0 × 3)
HDMI 4
VGA /
RS485 1
Buzzer Yes, buzzer alarm
Storage
HDD  24 x SATA, up to 16TB each
eSATA  1 port
General
Power Supply AC100-240V, 750W
Power Consumption < 650 W
Operating Conditions -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Conditions Less than 90% RH
Certifications CE/FCC
Dimensions 431.5 × 600 × 177.5 mm
Net Weight 28kg  without HDD

Download

Download Datasheet  Download
