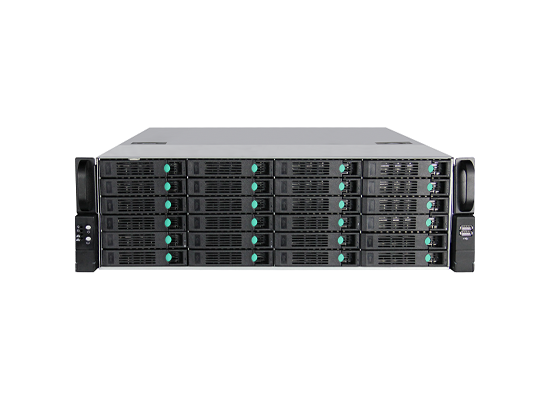

AVN-EN2816/ AVN-EN2824:128-Channel 4K Full Real-Time Intelligent Network Video Recorder

  • 128Ch 4K Intelligent NVR
  • 16/ 24HDD supported
  • IVS (Intelligent Video Analytics) Supported
  • Can add multiple Brand IP Camera
  • Free Intelligent VMS, Android, iPhone Supported
Categories: , , ,

Description

  • Maximum 128 channels full real-time 4K video access, 4U chassis NVR
  • 265, H.264 dual stream decoding, embedded Linux operating system
  • Support synchronous recording, remote monitoring, backup
  • Support dual VGA/dual HDMI heterogeneous simultaneous output, support 2160P HD preview
  • Support 12 times electronic magnification of preview image and playback image
  • Standard ONVIF, RTSP, GB28181 protocol
  • Alarm capture, alarm email sending function
  • Support DDNS, EMAIL, UPNP, NTP, P2P and other functions
  • Support WEB, mobile phone monitoring, client, CMS monitoring
  • Support external alarm, dual network ports, two-way voice intercom
  • Support our company’s SMART IPC target counting, item detection, area detection, virtual cordon, sound alarm, black and white list of license plates, vehicle detection, face detection, fire detection, video diagnosis, etc.
  • Support two storage modes: disk group quota and disk group, which can allocate different recording storage capacity or period to different channels
  • Support IPC centralized management, including IPC parameter configuration, information import and export, real-time information acquisition and upgrade functions
  • Dual gigabit network cards, support dual network IP settings and other applications
  • Support hard disk hot swap, RAID0, RAID1, RAID5, RAID6 and RAID10, global hot spare
  • Support channel grouping, preview round robin
  • Support NVR local intelligent analysis (target counting, item detection, area detection, virtual cordon, scene change)
  • Support network detection (network traffic monitoring, network packet capture, network smoothness) and other functions
  • Support up to 16 channels of 1080P video synchronous playback and multi-channel synchronous reverse playback
  • Support real-time playback function, playback the current video of the specified channel in the preview screen, and will not affect the preview of other channels
  • Brand-new UI operation interface, support one key to turn on the recording function



Specification



Model No. AVN-EN2816/ AVN-EN2824
Video & Audio Input Video Input 128ch（Compatible   with 4K and below 4K resolution）
Bandwidth 640Mbps
Audio Input IPC composite stream network audio   input
Video & Audio Output HDMI Output 1ch HDMI, 1ch VGA,  Resolution : 3840*2160/30Hz, 1920*1080/60Hz
Audio Output 2ch RCA
Screen split 1/4/6/8/9/16/25/36/64 screen display
Video & Audio Coding Video Format H.265/H.264 /MJPEG
Resolution 12M/8M/5M/3M/1080P/720P
Playback Max support 16ch 1080P playback
Video Management Video/Picture Mode Manual recording, timer recording,   event recording, motion detection recording, alarm recording, motion   measurement or alarm recording, motion measurement and alarm recording
Playback   Mode Instant playback, regular playback,   event playback, external file playback, log playback
Backup   Mode Regular backup, event backup, video   clip backup
Backup method: USB mobile hard disk, U disk, network backup, USB burning
Intelligent detection target counting, item detection, area detection, virtual cordon, motion detection, video loss, video occlusion,
HDD HDD Port 16 / 24* SATA + 1 * eSATA HDD Port
MAX Capacity Each port up to 8TB
Raid type Raid0, Raid1, Raid5, Raid6, Raid10, Hot spare
External Port Network Port 2x ; RJ45RJ45 10M/100M/1000M adaptive   Ethernet port
USB Port 3x, 2 * USB2.0 front, 1 * USB3.0 back
Serial   Port RS-485
Alarm   Input 16ch alarm input, active low, green   terminal interface
Alarm   Output 8ch alarm output, relay contact   (1A@24VDC), NO, NC programmable
Network Management Network Protocol ONVIF (supports version 2.4), IPv4,   UPnP (plug and play), NTP (network time), SADP (automatic search IP address),   PPPoE (dial-up), DHCP (automatically obtain IP address), etc.
Power Supply ATX110-220V   400W 50-60Hz
Working Temperature 10℃–＋55℃
Working Humidity 10％-90％
Power Consumption ≤50W (without HDD)
Dimensions Device : 431.5*600*177.5mm   Packing:720*545*280mm
Weight (Without HDD) N.W. : 18.5KG
External Carton Package 1 pcs/carton. Dimension : 752*577*312mm
Installation Method Desktop installation





Download

Download Datasheet  Download
